Placa Mãe Asus B760M-Ayw Wifi Ii Ddr5 Matx Lga 1700 M.2 Nvme Hdmi Usb 3.0 90Mb1Mh0-M0Eay0

Marca

Acer

Modelo

B760M-AYW WIFI II

CPU

Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Refer to https:/www.asus.com/support/download-center/ for CPU support list.

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B760 Chipset

Memória

2x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel Extreme Memory Profile (XMP) memory module

Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https:/www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.

Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Gráficos

1x HDMITM port**

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Slots de Expansão

Intel Core Processors (14th & 13th & 12th Gen)*

1x PCIe 5.0 x16 slot

Intel B760 Chipset

2x PCIe 4.0 x1 slots

To ensure compatibility of the device installed, please refer to https:/www.asus.com/support/ for the list of supported peripherals.

Armazenamento

Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*

Intel Core Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel B760 Chipset

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Rede

1x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.3*

*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 6 ports)

4x USB 5Gbps ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A

Front USB (Total 4 ports)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

1x USB 2.0 header supports 2 additional USB 2.0 ports

Áudio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

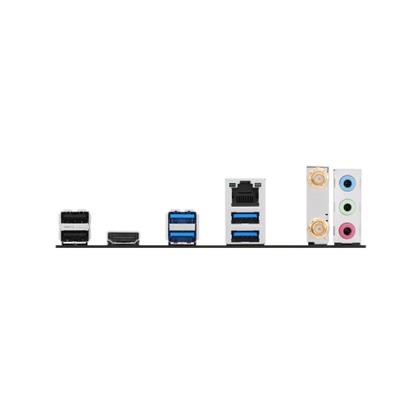

Portas I/O no painel Traseiro

4x USB 5Gbps ports (4 x Type-A)

2x USB 2.0 ports (2 x Type-A

1x HDMITM port

1x Wi-Fi Module

1x Realtek 2.5Gb Ethernet port

3x Audio jacks

Painel Interno

Fan and Cooling Related

1x 4-pin CPU Fan header

2x 4-pin Chassis Fan headers

Power Related

1x 24-pin Main Power connector

1x 8-pin +12V CPU Power connector

Storage Related

2x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

1x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous

3x Addressable RGB Gen 2 headers

1x Clear CMOS header

1x COM port header

1x Front Panel Audio header (F_AUDIO)

1x S/PDIF out header

1x Speaker header

1x SPI TPM header (14-1pin)

1x 10-1 pin Front Panel System header

Recursos Especiais

ASUS 5X PROTECTION III

DIGI+ VRM

LANGuard

Overvoltage protection

SafeSlot

Stainless-steel back I/O

ASUS Q-Design

M.2 Q-Latch

Q-DIMM

Q-LED Core

Q-Slot

ASUS EZ DIY

ProCool

ASUS Thermal Solution

M.2 heatsink

VRM heatsink design

Aura Sync

Addressable RGB Gen 2 headers

Recursos de Software

ASUS Exclusive Software

Armoury Crate

Aura Sync

Fan Xpert 2+

Two-Way AI Noise Cancellation

ASUS DriverHub

SUS CPU-Z

AI Suite 3

DIGI+ VRM

PC Cleaner

Norton 360 Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Gerenciamento

WOL by PME, PXE

Acessórios

Cables

2x SATA 6Gb/s cables

Miscellaneous

1x ASUS Wi-Fi moving antenna

1x I/O Shield

1x M.2 Rubber Package

1x Screw package for M.2 SSD

Documentation

1x Quick start guide

Sistema Operacional

Windows 11

Windows 10 64-bit

Formato

micro-ATX Form Factor

9.6 inch x 8.3 inch (24.4cm x 21.1cm)
