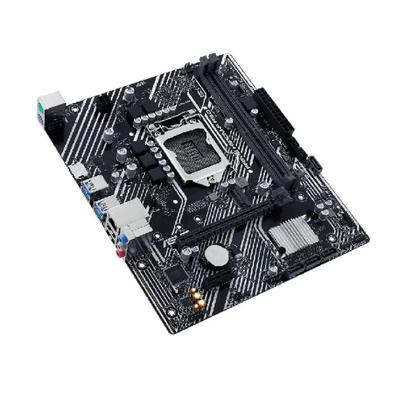

Placa Mae Asus Prime H510M-F R3.0 Lga 1200 Ddr4 M.2

ModeloPRIME H510M-F R3.0
CPUIntel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports up to Intel® 65W CPU Supports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel® H470 Chipset
Memória2 x DIMM slots, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.* 11th Gen Intel® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
Gráficos1 x HDMI™ port*** Graphics specifications may vary between CPU types.** Only Intel® 11th Gen processors support HDMI™ 2.1 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz.
Slots de ExpansãoIntel® 11th & 10th Gen Processors1 x PCIe 4.0/3.0 x16 slot- Intel® 11th Gen processors support PCIe 4.0 x16- Intel® 10th Gen processors support PCIe 3.0 x16Intel® H470 Chipset1 x PCIe 3.0 x1 slot
ArmazenamentoTotal supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H470 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports
Rede1 x Realtek 1Gb Ethernet
USBRear USB (Total 6 ports)4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 4 ports)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 ports
ÁudioRealtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Portas I/O no painel Traseiro4 x USB 5Gbps ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x HDMI™ port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard (purple) port1 x PS/2 Mouse (green) port
Painel InternoFan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related1 x 24-pin Main Power connector1 x 4-pin +12V Power connectorStorage related1 x M.2 slot (Key M)4 x SATA 6Gb/s portsUSB1 x USB 5Gbps header supports 2 additional 5Gbps ports1 x USB 2.0 header supports 2 additional USB 2.0 portsMiscellaneous1 x Clear CMOS header1 x Front Panel Audio header (F_AUDIO)1 x Speaker header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header
Recursos EspeciaisASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink design
Recursos de SoftwareASUS Exclusive SoftwareArmoury CrateAI Suite 3- Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM- EZ updateASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
BIOS128 Mb Flash ROM, UEFI AMI BIOS
GerenciamentoWOL by PME, PXE
AcessóriosCables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x M.2 AnchorDocumentation1 x Quick start guide
Sistema OperacionalWindows® 10 64-bit
FormatomATX Form Factor8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
