Placa mae gigabyte h610m h v3 ddr4 lga1700

Características:

- Marca: Gigabyte

- Modelo: H610M H V3 DDR4

Especificações:

CPU:

- LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core?, Pentium® Gold and Celeron® Processors

- L3 cache varies with CPU

- (Please refer "CPU Support List" for more information.)

Chipset:

- Intel® H610 Express Chipset

Memory:

- Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

- Dual channel memory architecture

- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

- Support for Extreme Memory Profile (XMP) memory modules

- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support - - List" on GIGABYTE's website for more information.)

Grafico:

- Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio:

- Realtek® Audio CODEC

- High Definition Audio

- 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN:

- Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

- Expansion Slots

CPU:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage:

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

- 4 x SATA 6Gb/s connectors

USB:

Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O:

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 1 x CPU fan header

- 2 x system fan headers

- 1 x M.2 Socket 3 connector

- 4 x SATA 6Gb/s connectors

- 1 x RGB LED strip header

- 1 x front panel header

- 1 x front panel audio header

- 1 x speaker header

- 1 x USB 3.2 Gen 1 header

- 2 x USB 2.0/1.1 headers

- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

- 1 x serial port header

- 1 x Clear CMOS jumper

- 1 x chassis intrusion header

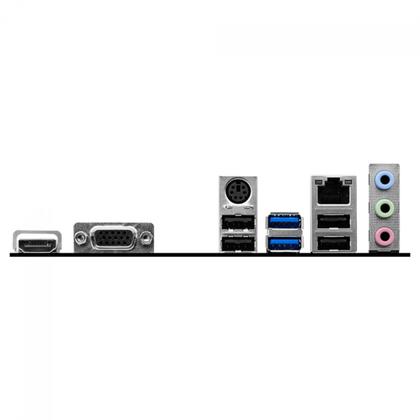

Painel traseiro:

- 1 x PS/2 keyboard/mouse port

- 1 x D-Sub port

- 1 x HDMI port

- 2 x USB 3.2 Gen 1 ports

- 4 x USB 2.0/1.1 ports

- 1 x RJ-45 port

- 3 x audio jacks

I/O Controller:

- iTE® I/O Controller Chip

H/W Monitoring:

- Voltage detection

- Temperature detection

- Fan speed detection

- Water cooling flow rate detection

- Fan fail warning

- Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS:

- 1 x 128 Mbit flash

- Use of licensed AMI UEFI BIOS

- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- Unique Features

- Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

- @BIOS

- EasyTune

- Smart Backup

- System Information Viewer

- Support for Q-Flash

- Bundled Software

- Norton® Internet Security (OEM version)

- LAN bandwidth management software

Operating System:

- Support for Windows 11 64-bit

- Support for Windows 10 64-bit

- Form Factor

- Micro ATX Form Factor; 22.3cm x 19.3cm

Conteúdo da Embalagem:

- Placa-Mãe Gigabyte
